8.50m Line Handling Boat
Overseas client asked for two Line Handling Boats to operate in a busy port.

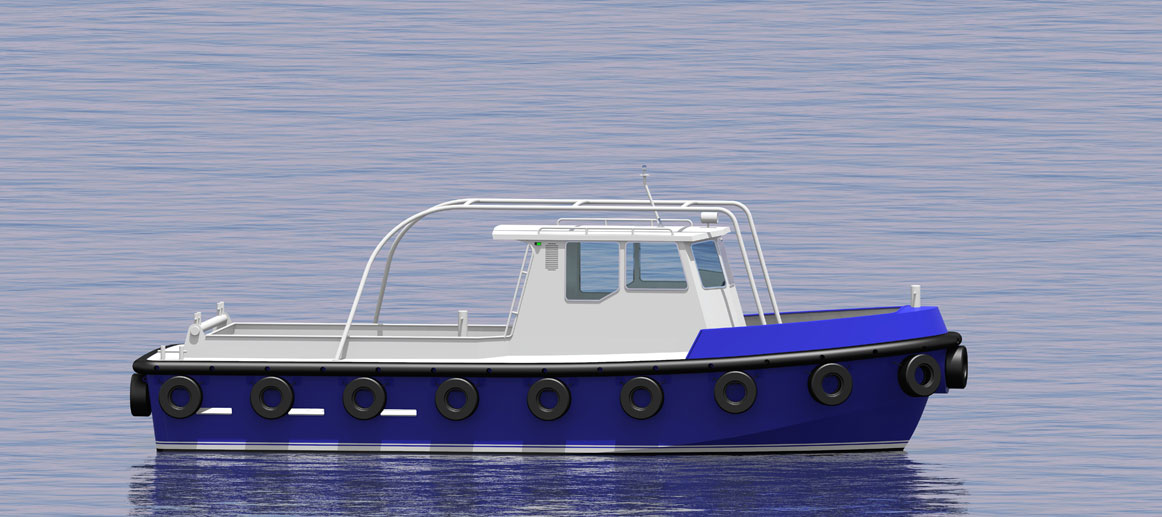

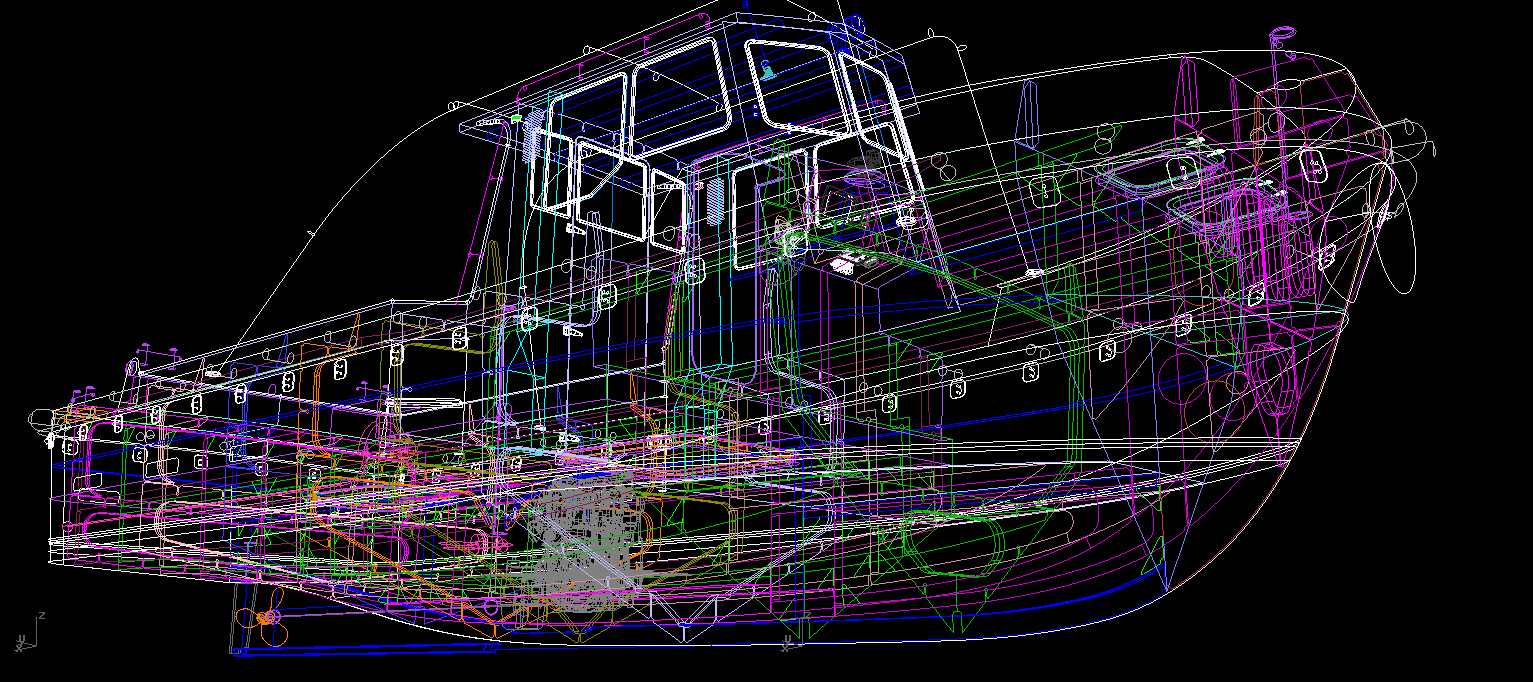

Like all other boats designed by GY Boat Design the hull, the exterior and the interior are modelled in 3D CAD. The structure plates are CNC cut.
The construction material is marine grade aluminum alloy.

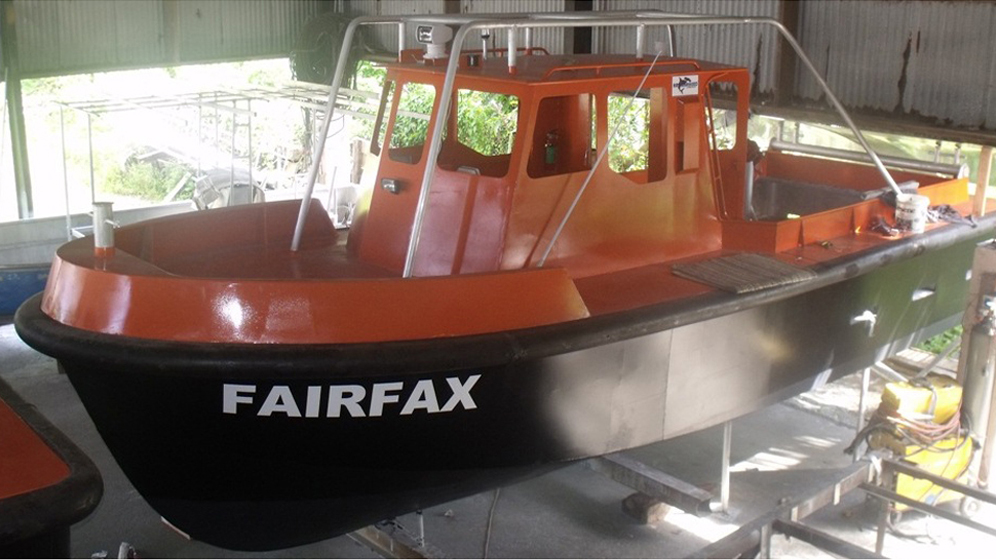

The boats are built and shipped to the client.
Specifications
| Length (Hull) | 8.50m |
| Length (Max) | 8.80m |
| Beam (Hull) | 2.80m |
| Beam (Max) | 3.10m |
| Waterline Length | 7.914m |
| Waterline Beam | 2.716m |
| Draft (Half load) | 0.630m |
| Displacement (Half load) | 4677 Kgf |
| Cb | 0.337 |
| Weight to immerse 1.0cm | 185.1 Kgf/cm |
| Engine S30 – 230 | 175hp @ 3500RPM |
| Propulsion | ZF 45-1 Vertical offset |
| Fuel | 2x 300L |
