8.5m Superyacht Amphibious Tender

The design work for this project has been done by Georgi Yankov while he worked as a Naval Architect for Vaudrey Miller Tenders, which included:

• naval architecture, 3d modeling of the hull shape and performance of the boat
• Composite structure engineering

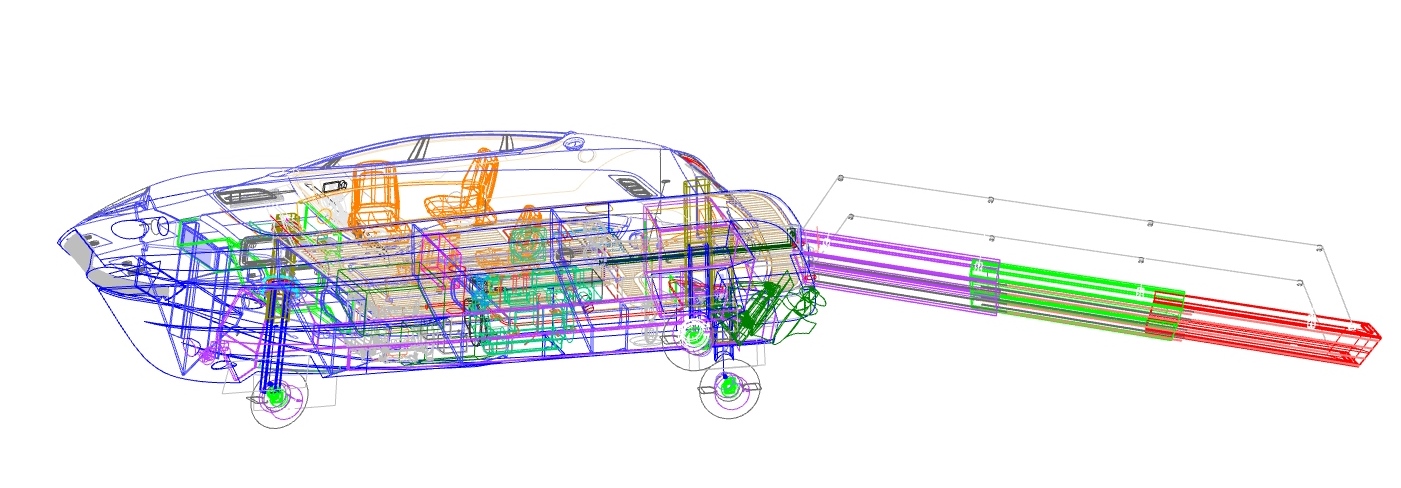

• 3d modeling of the structure, interior and exterior parts
• design, structure engineering and 3d modeling of the wheels retractable systems, arms, drives, mechanical components, etc.

GY Boat Design worked on this project as an independent Naval Architecture Company and submitted to CE the stability booklet and calculations for resistance to waves and wind and the offset load test.

The sea trails has been successfully completed in March 2012

All tests on water and land, her performance, speed and stability were signed off by the owner’s representative and CE.

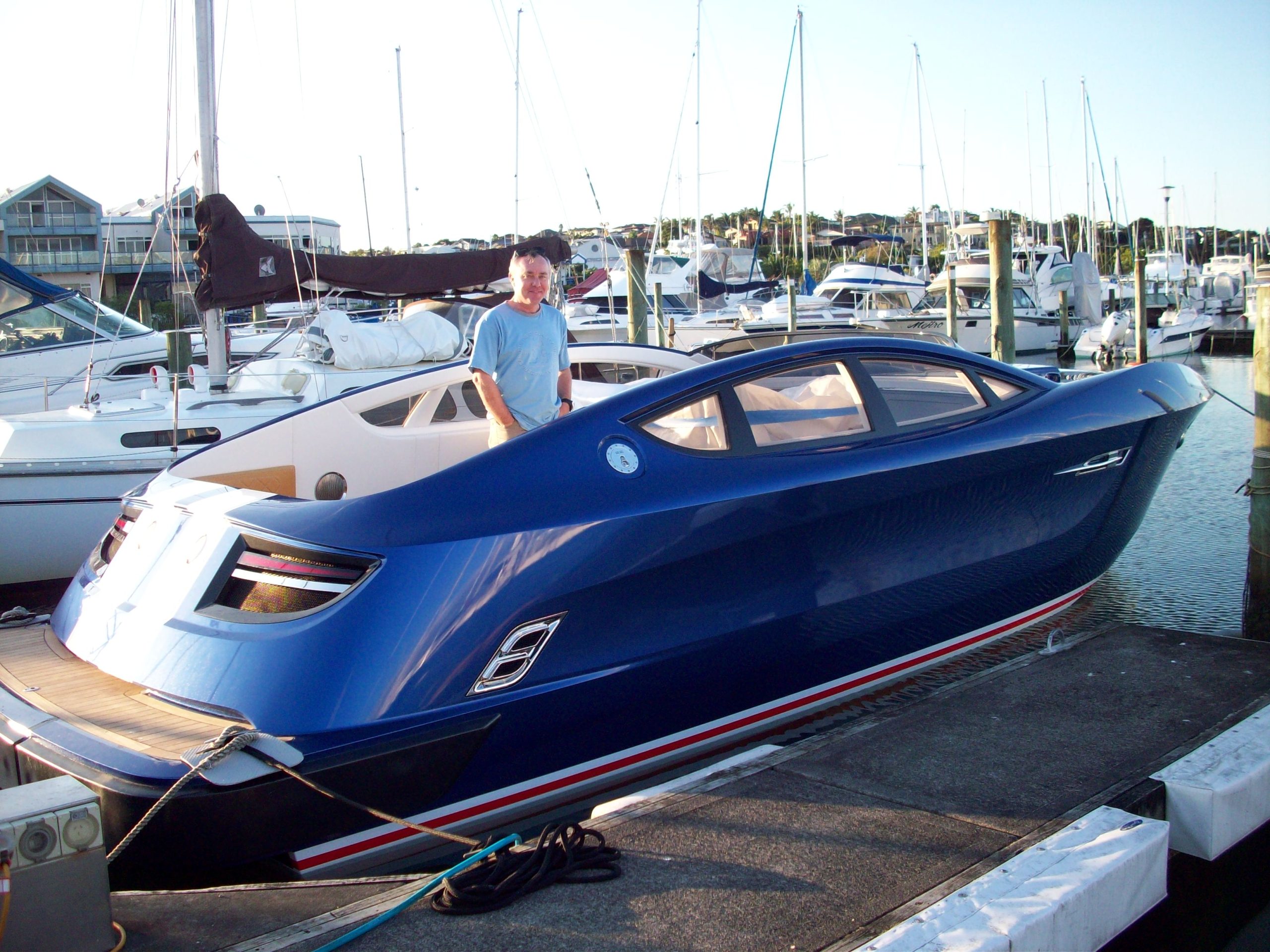

She is delivered to her owner.

Some of features of “The Car-boat”

• Amphibious boat capable of 36 knots speed on water, 10 km/h on level ground and up to 5 km/h when on 15  degrees slope.
• Hull bottom incorporates 3 recessed compartments to house the landing wheels and hydraulic arms. The compartments are closed off with hinged flaps when the boat is in sea mode. In sea mode the compartments are flooded when the boat is at rest and venturi dry when she is under way.

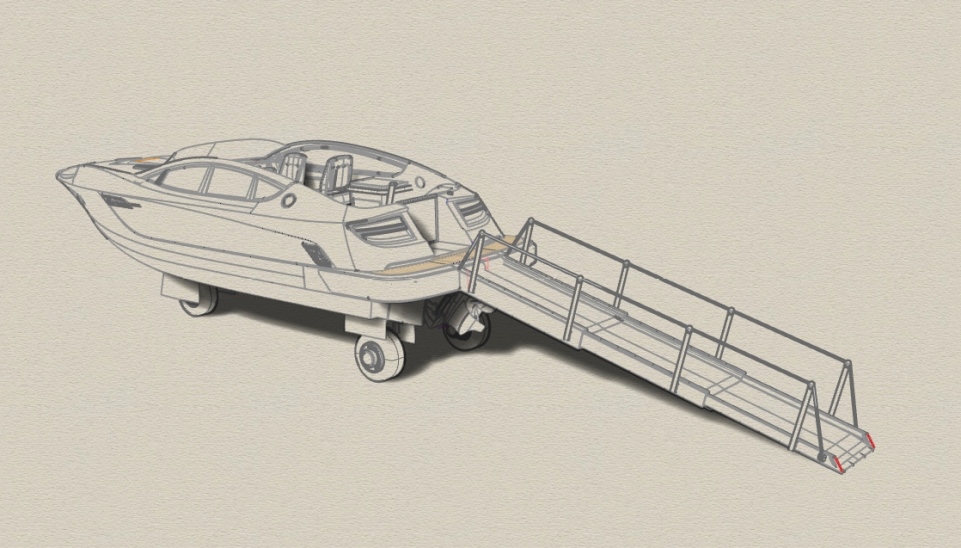

• Three stage carbon telescopic wheelchair boarding ramp slides out from the aft face of the boarding platform with maximum reach of 5.3 m. The ramp is rated to carry 300kg, has width of 800mm and maximum gradient of 15 degrees. Removable single rope with four S/S stanchions handrail can be manually installed when the ramp is fully extended.
• Hull and deck carbon/epoxy composite structure built from female CNC moulds
• Foredeck recessed to port and starboard incorporates high and low beam headlights. Headlights are protected by watertight flush perspex covers
• The transoms face above the stern platform incorporate a recess for taillights and also the air out grills for ventilating the machinery space.
• Transom hinged door.
• Side windows utilize car components for the opening and closing mechanism.
• Front opening 12 volt fridge and a small sink at the top below a hinged lid.
• Marine audio entertainment system with subwoofer and four water proof flush mounted speakers
• Bow thruster and trim control
• Deck shower, removable ski pole and carbon fibre swim ladder.
