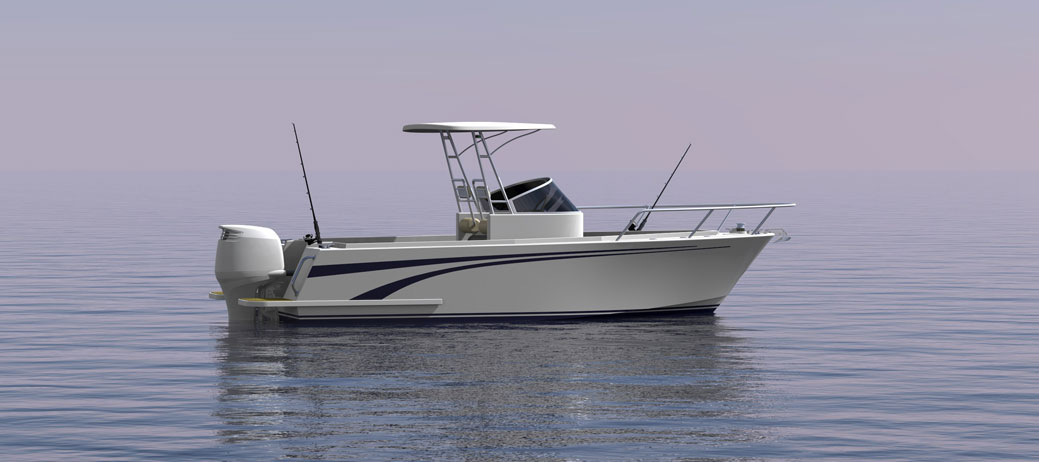

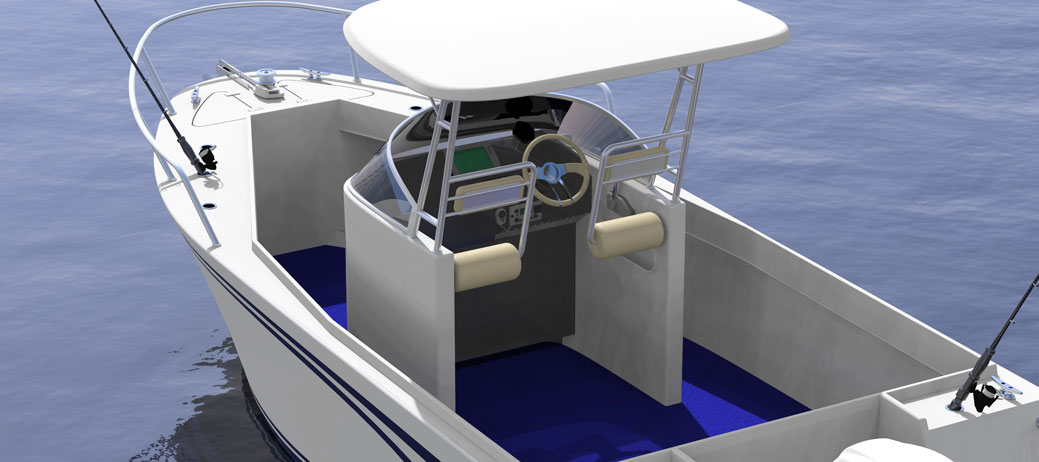

GY16.7' CC - 5.0m Centre Console Fishing Boat
The 5.0m Centre Console Fishing Boat:
- can be classified for CE approval category B offshore
- the cockpit is self draining
- can be build from marine grade aluminium alloy
- all surfaces are developable for easier roll over the frames
- the hard top can be fix or removable for reducing the drag during the road transportation, or for less stowed height if require for storage.
- to make the helm area enclosed clears can be fitted between the windshield and the hard top.
Some of the other features – electrical windlass, electrical deck shower, removable ski pole and swim ladder
Specifications
Overall Length | 5.70 m (including the handrail and swim platforms) |
Hull Length | 5.03m |
Length (Waterline) | 4.38m |
Hull Beam | 2.15m |
Internal Beam | 1.96m |
Draught (Engine up) | 0.25m |
Displacement (Approximately) | 800kg |
Deadrise (Transom) | 18 degree |
Weight to Immerse | 1.0cm 65.3 kgf/cm |
Engine | Outboard 75-115hp |
Fuel | 120L |
