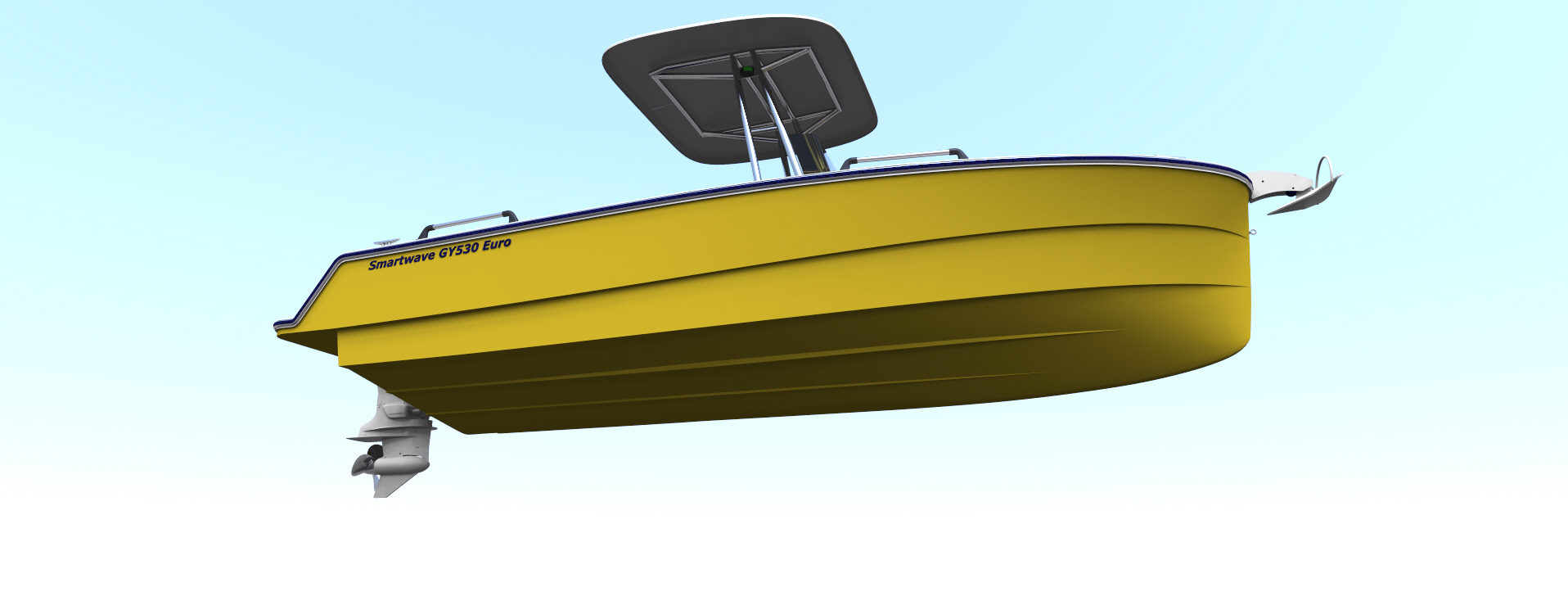

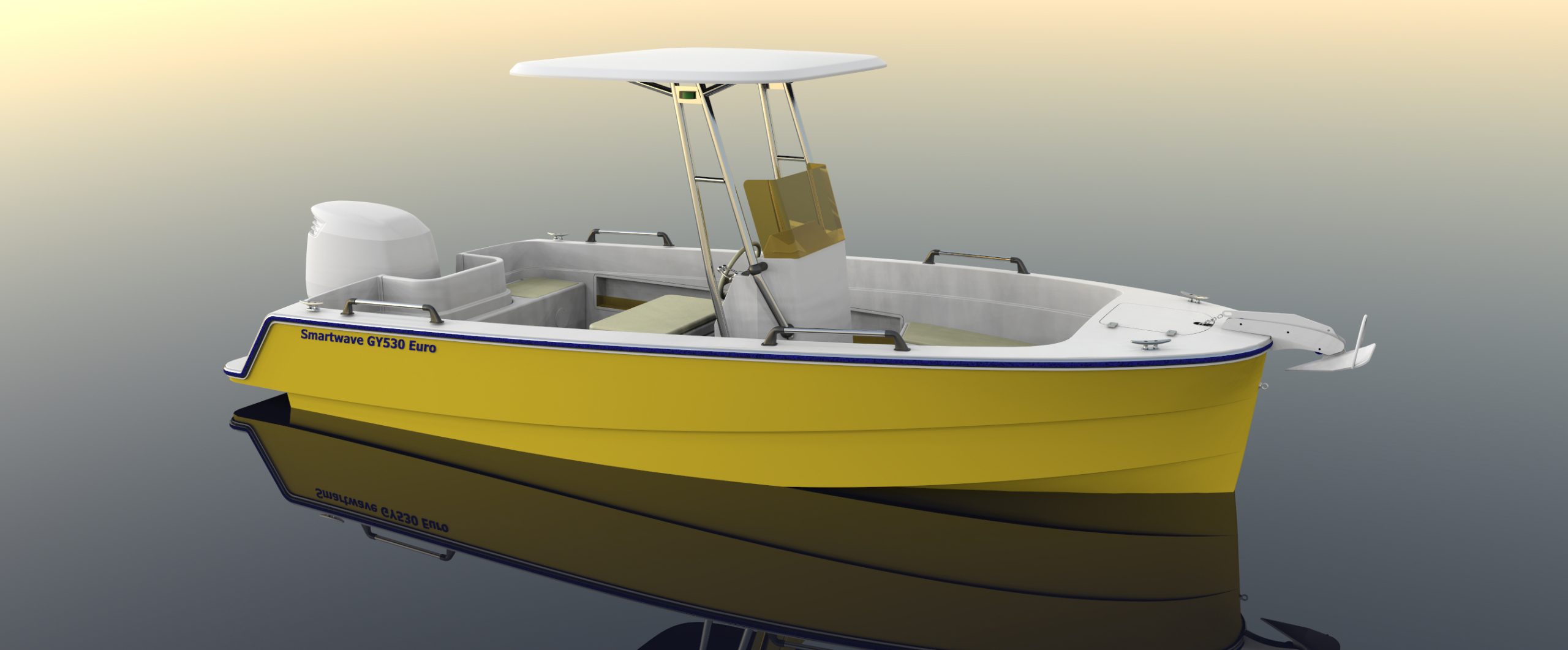

GY530 Family Boat

Design Specifications

Moulded Length (including stern platforms) 5.3m
Maximum Length 5.607m
Waterline Length 4.708m
Moulded Beam (hull) 2.261m
Maximum Beam 2.285m
Waterline Beam 2.148m
Draft (Half load) 0.300 m
Displacement (half load) 1300 Kgf
Weight to immerse 77.0 kgf/cm
Outboard Engines 1x115HP (20″ shaft)
Fuel 100L
